Thermal Oil Boilers

Biomass

Industrial thermal oil boilers from biomass

Efficiency and Sustainability in Thermal Oil Boilers with Biomass

Thermal Oil Boilers with Biomass

INNERGY’s industrial biomass thermal oil boilers are designed under the strictest quality standards to satisfy the needs of our customers. At INNERGY, we cover the entire process, from design, manufacturing, assembly and commissioning. In addition, we accompany the client throughout the useful life of the plant through our maintenance service offer.

Thermal oil heating is a type of indirect heating in which the temperature of a liquid phase heat transfer fluid is raised, which is then pumped to the users of said thermal energy within a closed circuit. There are multiple applications and sectors where thermal oil generated by industrial thermal oil boilers with biomass can be used, among others: wood, cork, rubber, tanning, chemical, petrochemical, textile, metallurgical, ceramic, glass/crystal, paper/cardboard, printing /screen printing/flexography, detergents, automotive, food, pharmaceutical and agribusiness.

Maximum operating temperature: Max. 350ºC.

Powers: Standard up to 25 MW, special design up to 50 MW.

Thermal Oil Boilers with Biomass

INNERGY’s biomass thermal oil industrial boilers are designed under the strictest quality standards to satisfy the needs of our customers. At INNERGY, we design, manufacture, assemble and commission industrial thermal oil boilers with biomass. In addition, we accompany the client throughout the useful life of the plant through our maintenance service offer.
Thermal oil heating is a type of indirect heating in which the temperature of a liquid phase heat transfer fluid is raised, which is then pumped to the users of said thermal energy within a closed circuit. There are multiple applications and sectors where thermal oil generated by industrial thermal oil boilers with biomass can be used, among others: wood, cork, rubber, tanning, chemical, petrochemical, textile, metallurgical, ceramic, glass/crystal, paper/cardboard, printing /screen printing/flexography, detergents, automotive, food, pharmaceutical and agribusiness.

Maximum operating temperature: Max. 350ºC.

Powers: Standard up to 25 MW, special design up to 50 MW.

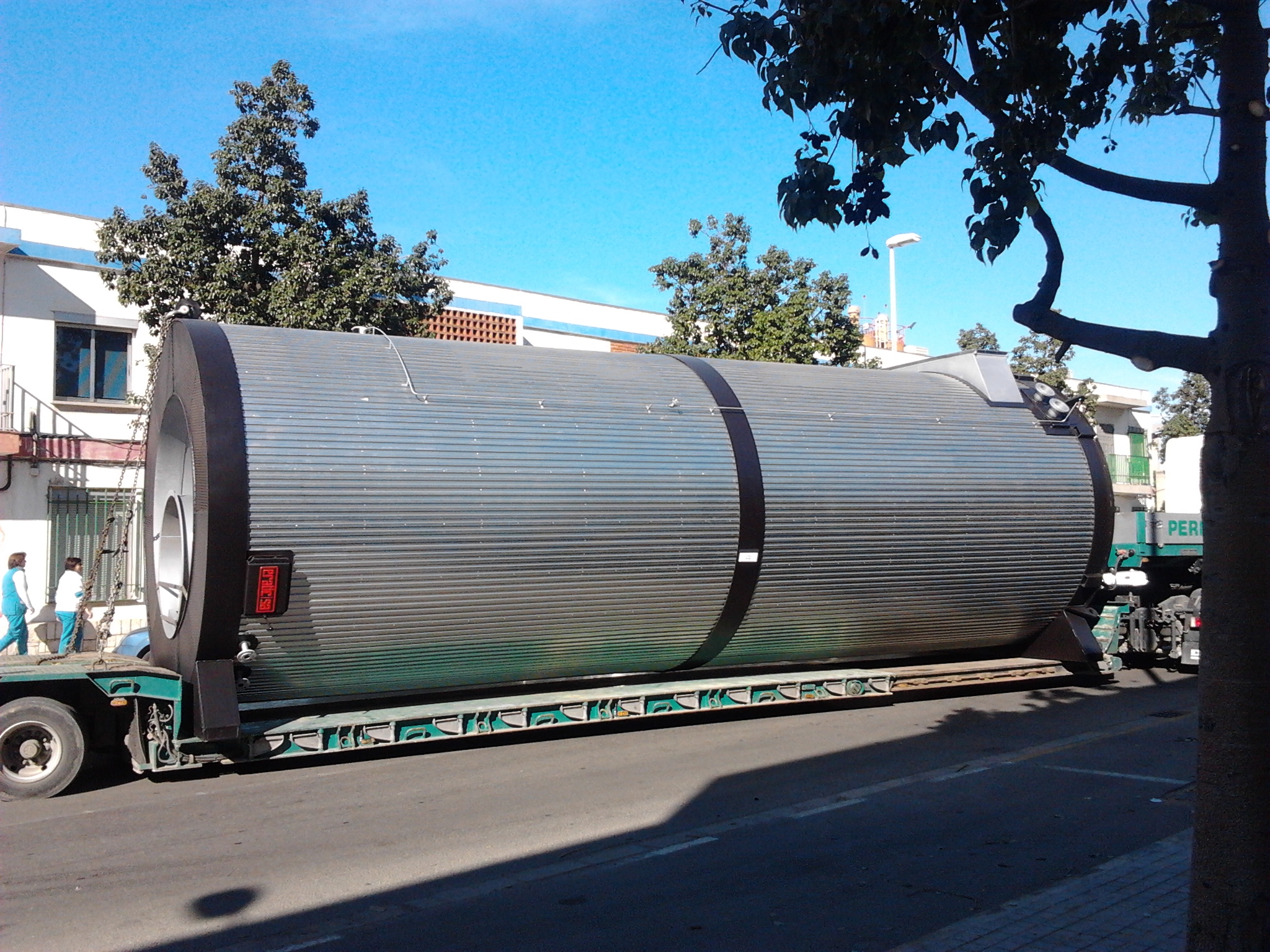

Scope of Industrial Thermal Oil Boilers with ERATIC Biomass

  • Biomass storage and transportation system to the combustion chamber.

  • Combustion installation:
    • Combustion chamber.
    • Automatic combustion control system with oxygen probe.
    • Biomass automatic feeding device.
    • Combustion gas/air circuits, including delivery fans.
    • Ash extraction system.

  • Oil boiler with biomass and thermal oil circuit:
    • Exchanger body.
    • Automatic boiler tube cleaning system.
    • Motor-pump groups.
    • Valves, filters and accessories.
    • Pipelines.
    • Central and expansion tank required.

  • Gas circuit:
    • Ducts
    • Multicyclone to purify particles and preheat the combustion air.
    • Gas extraction fan.
    • Chimney for gas evacuation.

  • Instrumentation, regulation, control and safety elements specifically designed for the proper functioning of industrial thermal oil boilers with biomass.

  • Electrical panel and control by programming with PLC.

  • Structures, walkways, stairs, railings and handrails.

  • Protective paint that prevents rust and deterioration of equipment.

  • Design and engineering service: technical and official documentation, tests and certifications, engineering work, project coordination, implementation, detail and execution.

  • Transportation of the supplied equipment to the client’s facilities.

  • Assembly and commissioning of the industrial thermal oil boiler with biomass.

Scope of Industrial Thermal Oil Boilers with ERATIC Biomass

  • Biomass storage and transportation system to the combustion chamber.

  • Combustion installation:
    • Combustion chamber.
    • Automatic combustion control system with oxygen probe.
    • Biomass automatic feeding device.
    • Combustion gas/air circuits, including delivery fans.
    • Ash extraction system.

  • Oil boiler with biomass and thermal oil circuit:
    • Exchanger body.
    • Automatic boiler tube cleaning system.
    • Motor-pump groups.
    • Valves, filters and accessories.
    • Pipelines.
    • Central and expansion tank required.

  • Gas circuit:
    • Ducts
    • Multicyclone to purify particles and preheat the combustion air.
    • Gas extraction fan.
    • Chimney for gas evacuation.

  • Instrumentation, regulation, control and safety elements specifically designed for the proper functioning of industrial thermal oil boilers with biomass.

  • Electrical panel and control by programming with PLC.

  • Structures, walkways, stairs, railings and handrails.

  • Protective paint that prevents rust and deterioration of equipment.

  • Design and engineering service: technical and official documentation, tests and certifications, engineering work, project coordination, implementation, detail and execution.

  • Transportation of the supplied equipment to the client’s facilities.

  • Assembly and commissioning of the industrial thermal oil boiler with biomass.

What does INNERGY offer?

  • Additional gas particle treatment systems using electrofilter or bag filter.

  • NOx emissions reduction systems.

  • Pipe networks and regulating elements connecting the biomass thermal oil boiler with consumers.

  • Thermal oil, with different properties according to the project requirements.

  • Auxiliary thermal oil motor pump group with diesel engine.

  • Thermal energy meters.

  • Automatic boiler ignition systems.

  • Thermal isolation.

  • Electrical wiring.

  • Blanketing systems to extend the useful life of thermal oil.

  • List of recommended spare parts.

  • SCADA installation monitoring and control system.

  • Standard, predictive and corrective maintenance contracts.

Combustion Solutions

INNERGY incorporates the most optimal combustion solution for each application and fuel, with the following technologies:

  • Fixed grill: This technology consists of a fixed structure on which the fuel is placed. It is suitable for fuels with low humidity and uniform size. Combustion is carried out in a controlled manner, ensuring efficient combustion and minimal production of unburned fuel.

  • Reciprocating mobile grill: This grill moves reciprocally to facilitate the mixing and combustion of fuel. It is ideal for fuels of various sizes and with higher humidity. This movement allows for better air distribution and greater combustion efficiency.

  • Rotary furnace: In this system, the fuel is introduced into a rotating cylinder that ensures a homogeneous mixture and complete combustion. It is especially useful for fuels that are difficult to burn and have high humidity.

  • Fluidized bed: This system uses a bed of granular material that is fluidized with air. The fuel burns in suspension, allowing for uniform and efficient combustion. It is suitable for a wide range of fuels and is characterized by low emissions and high efficiency.

Combustion Solutions

INNERGY incorporates the most optimal combustion solution for each application and fuel, with the following technologies:

  • Fixed grill: This technology consists of a fixed structure on which the fuel is placed. It is suitable for fuels with low humidity and uniform size. Combustion is carried out in a controlled manner, ensuring efficient combustion and minimal production of unburned fuel.

  • Reciprocating mobile grill: This grill moves reciprocally to facilitate the mixing and combustion of fuel. It is ideal for fuels of various sizes and with higher humidity. This movement allows for better air distribution and greater combustion efficiency.

  • Rotary furnace: In this system, the fuel is introduced into a rotating cylinder that ensures a homogeneous mixture and complete combustion. It is especially useful for fuels that are difficult to burn and have high humidity.

  • Fluidized bed: This system uses a bed of granular material that is fluidized with air. The fuel burns in suspension, allowing for uniform and efficient combustion. It is suitable for a wide range of fuels and is characterized by low emissions and high efficiency.

Successful projects

INNERGY has significant experience in the use of biomass and agricultural waste for energy generation.

  • Bagasse

  • Wood (Chip and bark) in its different variables.

  • rubber wood

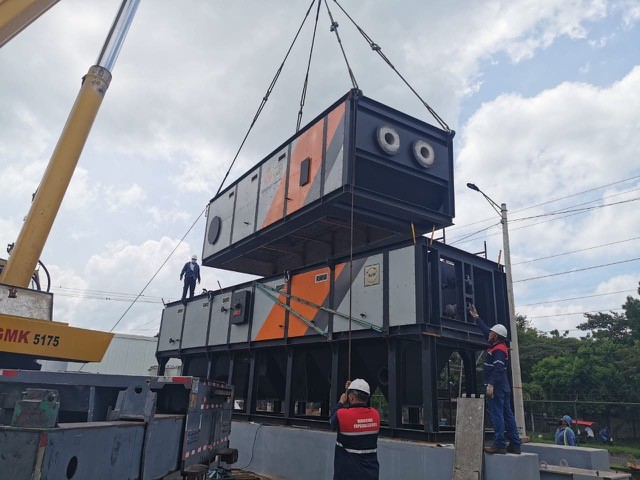

  • Rice husk

  • corn stalk

  • animal manure

  • Sawdust

  • wheat straw

  • rice straw

  • Orujillo and Alperujo of the olive
  • Empty Fruit Bunch (EFB): Palm Residue

  • Urban solid waste

  • Rubber bark wood

  • MBM (Meat and Bone Meal)

  • Mustard peel

  • Bamboo

  • Cotton stem

  • Palm fiber and shell

  • Waste water (1G ethanol technology)

  • Lignin Cake + 2G Ethanol Technology Syrup
